Overview

The A3 risers are designed specifically for the Wing 20C+ and Wing Ultimate.

The system is backwards compatible with A2 risers by using the A2/A3 adapter.

Key Features:

• Compatible with the A3 riser system

• Can be used with A2 riser system with adaptor

Tech Specs

• Compatibility: Wing 20C+ and Wing Ultimate

• Includes: Risers and Bolts specific to the kit size

• Maximum Height: A3A Low Riser Kit = 35mm  and  A3A High Riser w/A2 Bridge Kit: Wing 20c+ II = 60mm or Wing ULT S = 65mm

• Weight:  35mm: 594g and 80mm: 726g (Complete Kit)

Tech Guide

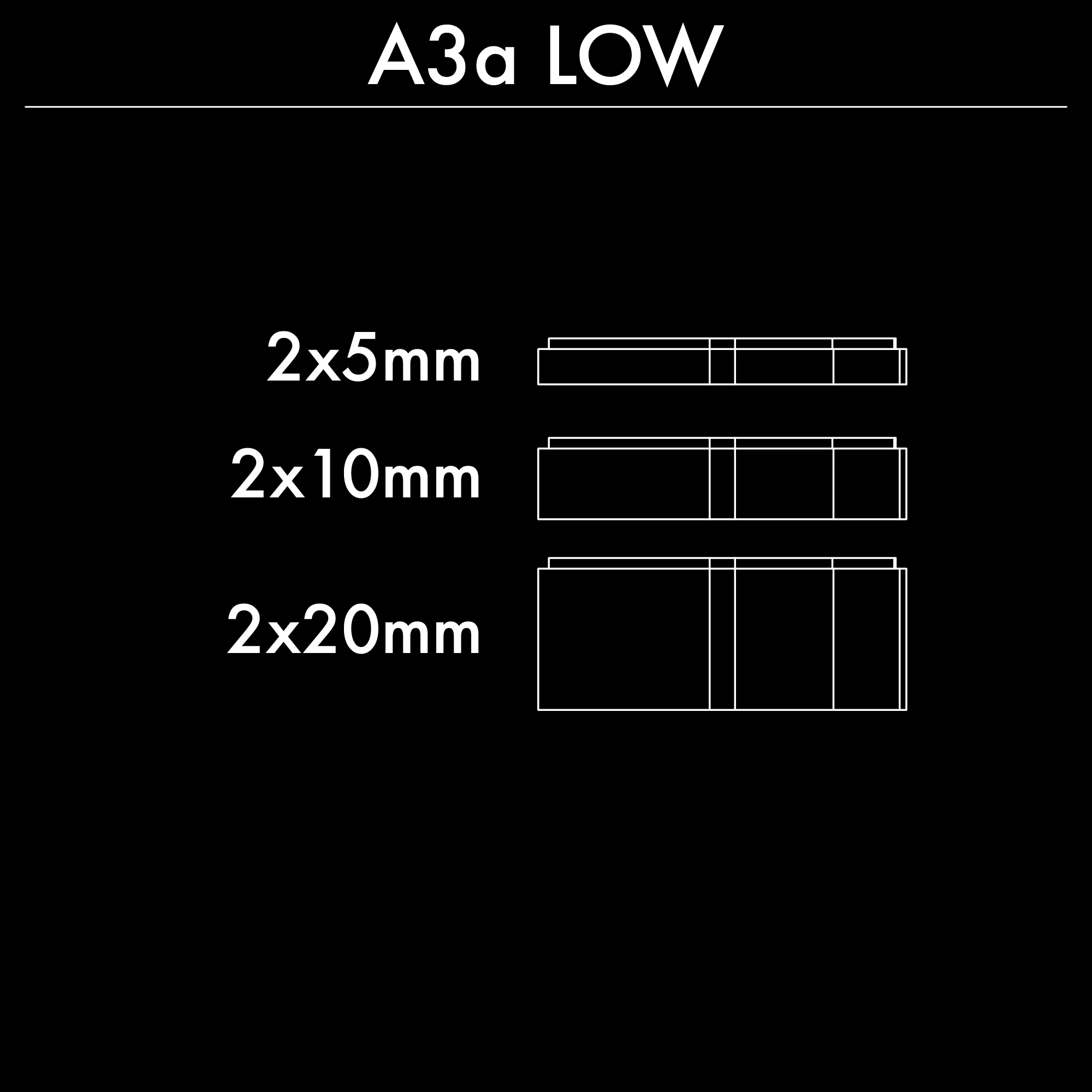

A3A Low Riser Kit Includes:

Risers:

• 5mm: 2 Risers
• 10mm: 2 Risers
• 20mm: 2 Risers


Bolts:

• 35mm: 4 Bolts
• 40mm: 4 Bolts
• 45mm: 4 Bolts
• 50mm: 4 Bolts
• 55mm: 4 Bolts
• 60mm: 4 Bolts
• 65mm: 4 Bolts
• 70mm: 4 Bolts
• 75mm: 4 Bolts

Accessories:

• Washer: 4 Washers

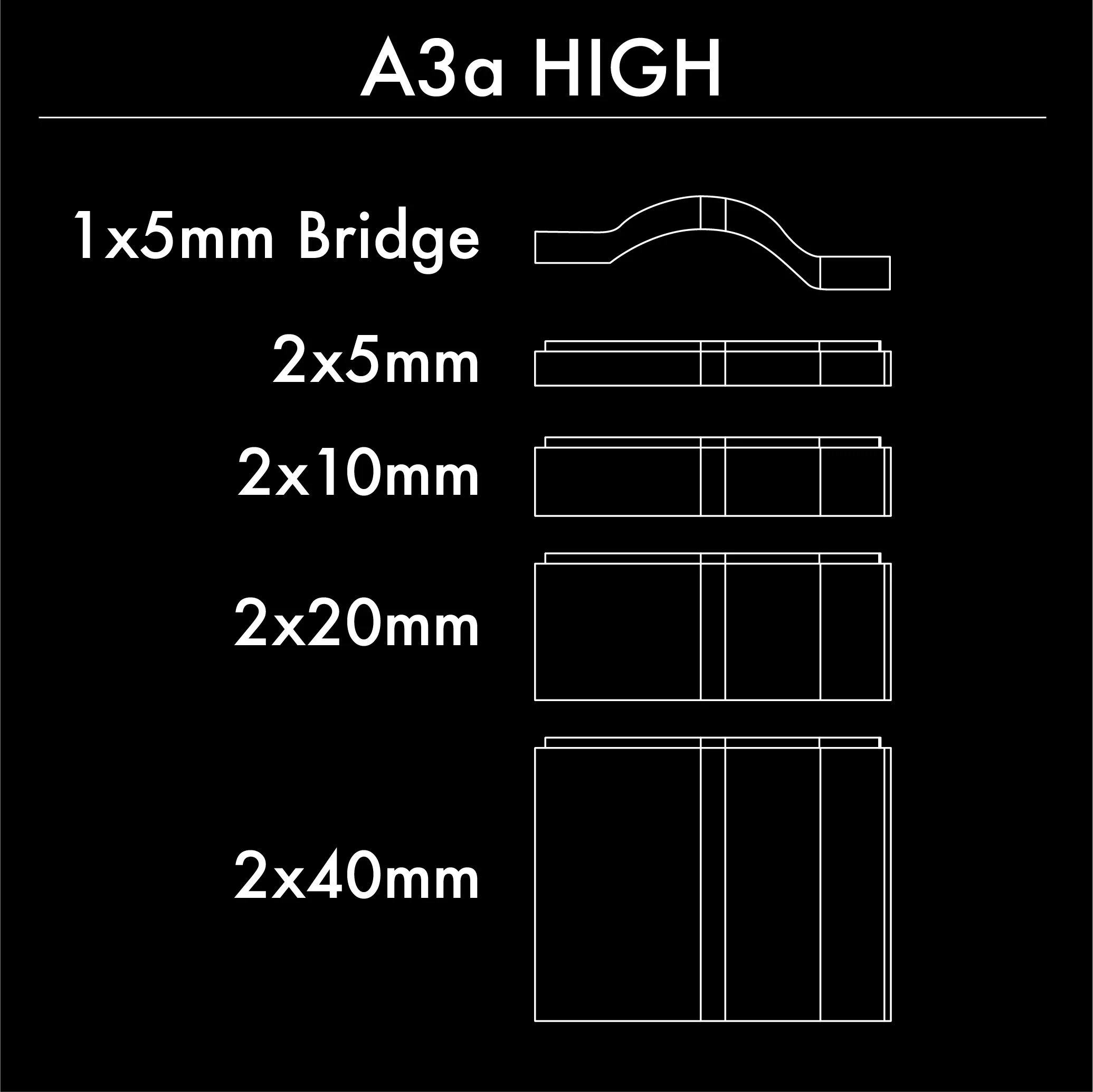

A3A High Riser w/A2 Bridge Kit Includes:

Risers:

• 5mm: 2 Risers
• 10mm: 2 Risers
• 20mm: 2 Risers
• 40mm: 2 Risers


Bolts:

• 75mm: 4 Bolts
• 80mm: 4 Bolts
• 85mm: 4 Bolts
• 90mm: 4 Bolts
• 95mm: 4 Bolts
• 100mm: 4 Bolts

Accessories:

• Washer: 4 Washers
• A2 Bridge (5mm): 1 Bridge


Manual

A3 Riser Installation Instructions

A2 Bracket with A2A Bridge Bolt Chart Installation Instructions

A3 Bracket with A3A BTA Bolt Chart Installation Instructions
