The shallow 22mm height of our new Carbon Gravel wheelset was conceived during  a gusty, coastal gravel race when our designer decided that the 50mm rims he was using weren't the right choice for the occasion.

The rest of the specs were also developed to suit the way gravel bikes are being ridden - wide hookless TLR Carbon rims and a star ratchet hub for optimal responsiveness.

GMR 22mm rim depth makes for a great all rounder. If you’re looking for a wheelset for every day use, particularly if your riding conditions are often windy, this is the one. The 22mm height offers a great aero boost over a standard alloy wheelset but doesn’t add so much side area that the wind can push you around.

Of course, the shallower rim is also lighter, so it’s well suited to hilly terrain.

The GMR 22 Tubeless Disc-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 26mm, the wheelset is well suited for rough roads.

Specifications

• 22mm rim depth for a balance between aerodynamics and control.

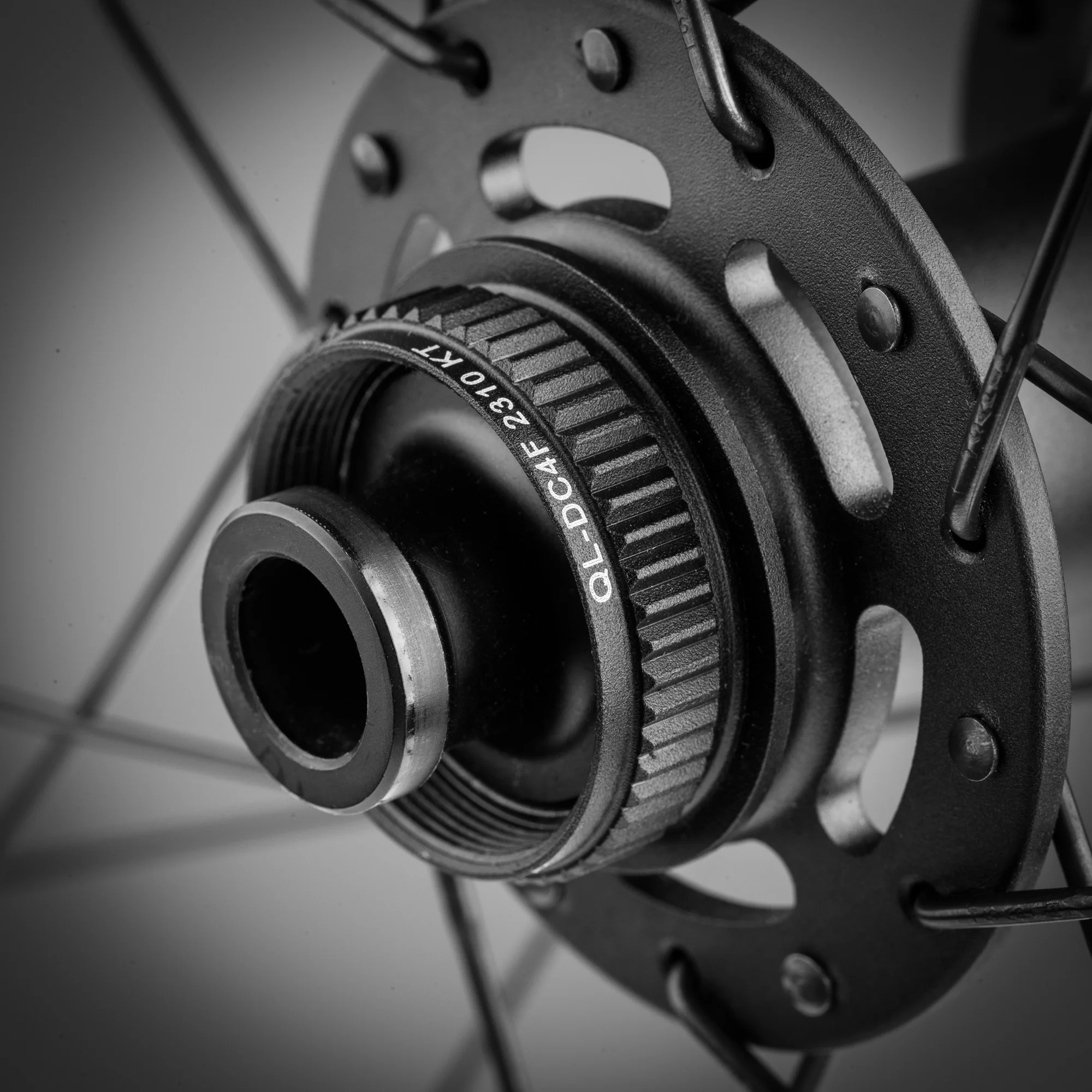

• Centerlock disc rotor mount
• Extra stiff hub shell design.

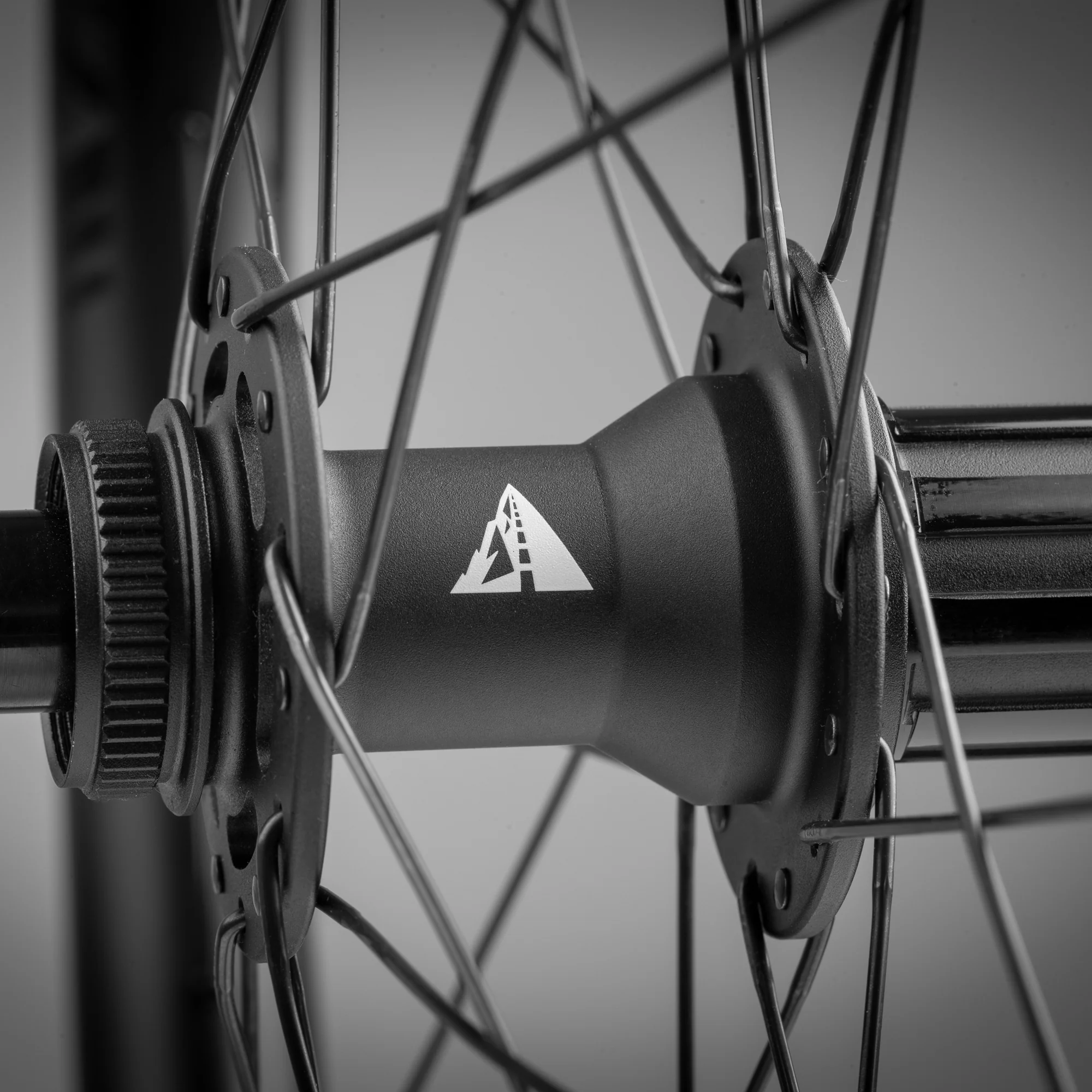

• Proprietary precision machined alloy hubs.
• Widths optimised for wide race tyres.
• Star Ratchet hub for rapid engagement
• J-Bend spokes for easy servicing.
• Sealed cartridge bearings.
• Hand-built assembly.

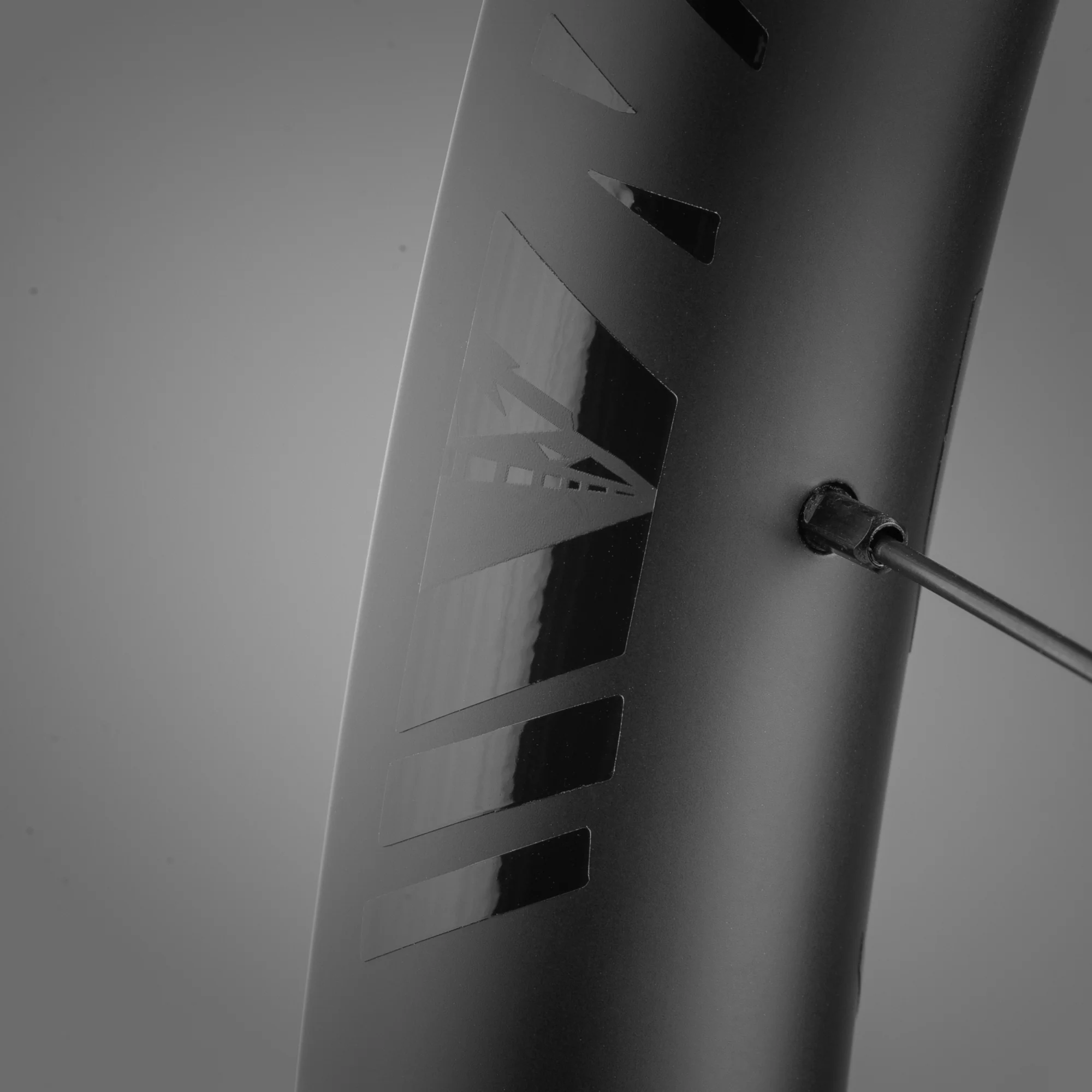

• Full Carbon Hookless, Tubeless Ready Rim.
• Disc brake.

Tech Specs

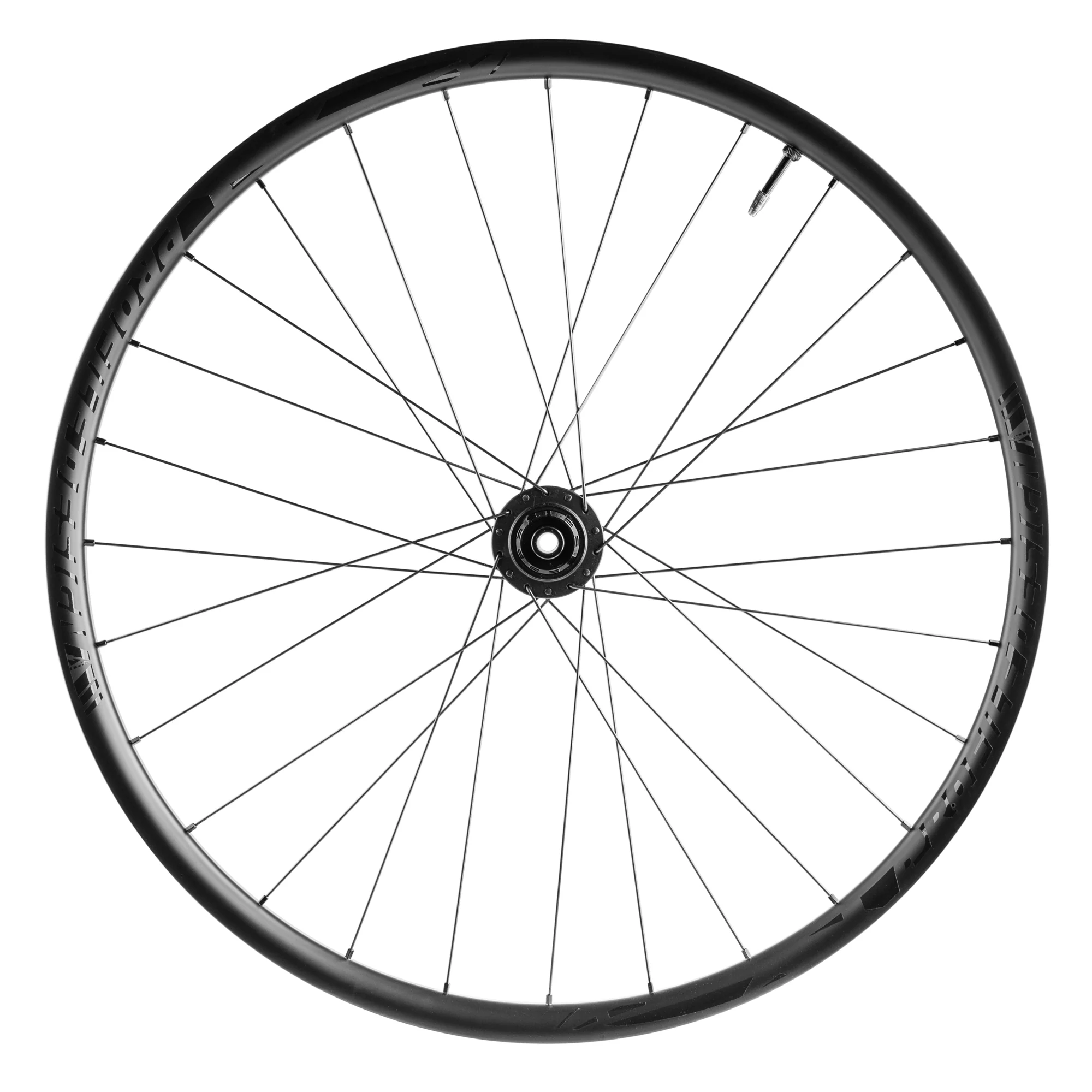

Front Wheel

• Weight:  720g
• Diameter: 700c
• Hub: 6061-T6 Alloy
• Bearing Size:
• Hub Compatibility: 12 x 100mm (Through-Axle)
• Rotor Compatibility: Center Lock
• Rim Depth: 22mm
• Rim Width (Outside): 32mm
• Rim Width (Inside): 26mm
• Color: UD Carbon
• Spokes: J-Bend - Stainless double butted
• Spoke Count: 28
• Spoke Pattern Non-Drive: 2 cross
• Spoke Pattern Drive: 2 cross
• Spoke Length Non Drive:  mm
• Spoke Length Drive  mm
• Nipples: 7075 Alloy Polyax Double Square
• External Nipples: Yes
• Tire Compatibility: Tubeless Ready (TLR) / Hookless
• Max Tire Pressure: refer to Tire sidewall
• Tire Width: 700c x 37-70mm

Rear Wheel

• Weight: 850g
• Diameter: 700c
• Hub: 6061-T6 Alloy
• Bearing Size:
• Hub Compatibility: 12 x 142mm (Through-Axle)
• Rotor Compatibility: Center Lock
• Rim Depth: 22mm
• Rim Width (Outside): 32mm
• Rim Width (Inside): 26mm
• Color: UD Carbon
• Spokes: J-Bend - Stainless double butted
• Spoke Count: 28
• Spoke Pattern Non-Drive: 2 cross
• Spoke Pattern Drive: 2 cross
• Spoke Length Non Drive: mm
• Spoke Length Drive: 2mm
• Nipples: 7075 Alloy Polyax Double Square
• External Nipples: Yes
• 11-Speed Compatible Hub: Yes (Shimano/SRAM)
• 12-Speed XDR Compatible Hub:
• Tire Compatibility: Tubeless Ready (TLR) / Hookless
• Max Tire Pressure: refer to Tire sidewall
• Tire Width: 700c x 37-70mm

Wheelset

• Set Weight: 1600g
• Max Recommended Rider Weight (lbs):  300lbs

What's Included

• Tubeless valves Stems - pre installed
• Tubeless Rim Strips - pre installed
• 2 x 265mm extra spokes
• 2 x 267mm extra spokes
• 4 extra nipples
• 4 extra nipple washers

Manual

GMR 22 Carbon Tubeless Disc-Brake Gravel Wheelset Installation Instructions
