Overview

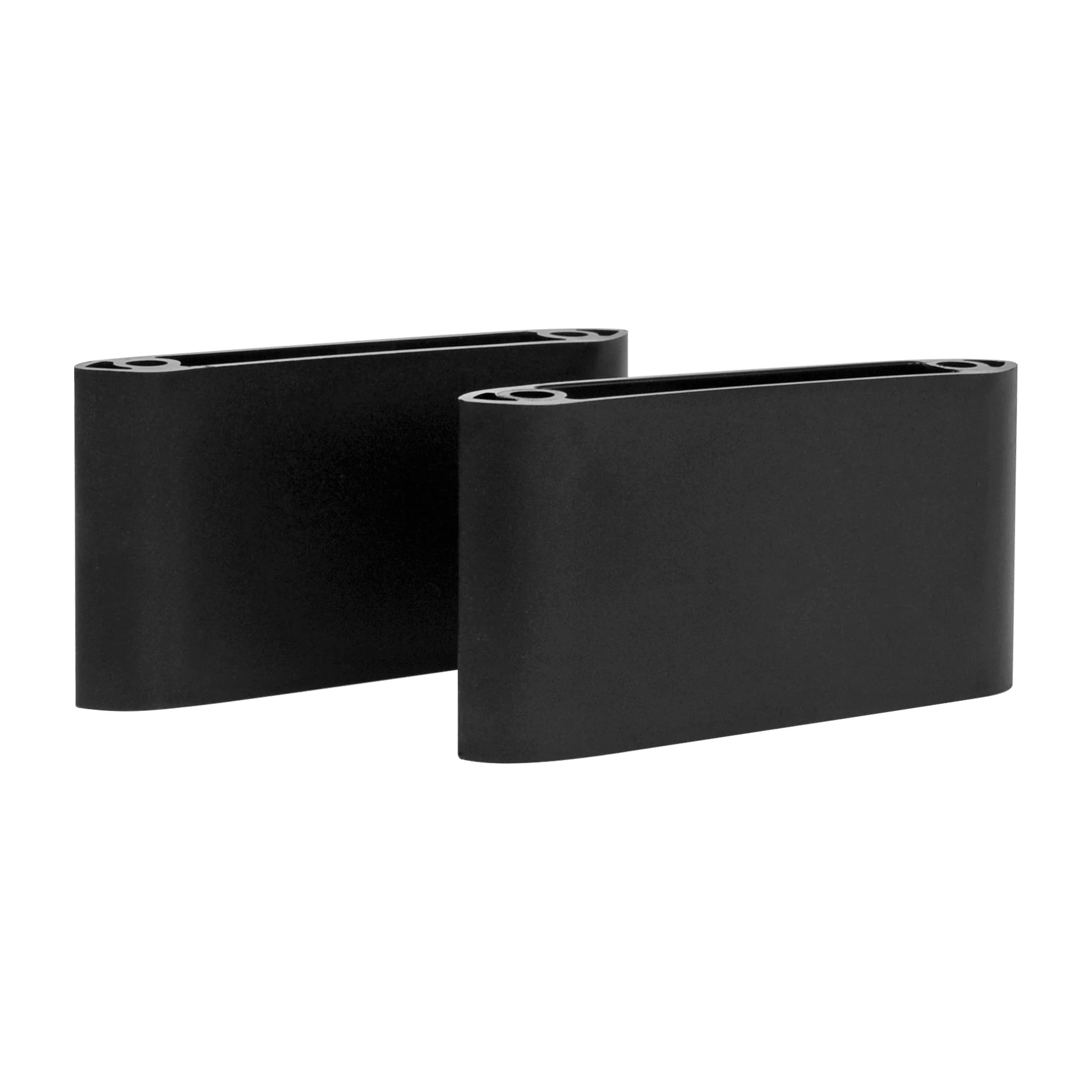

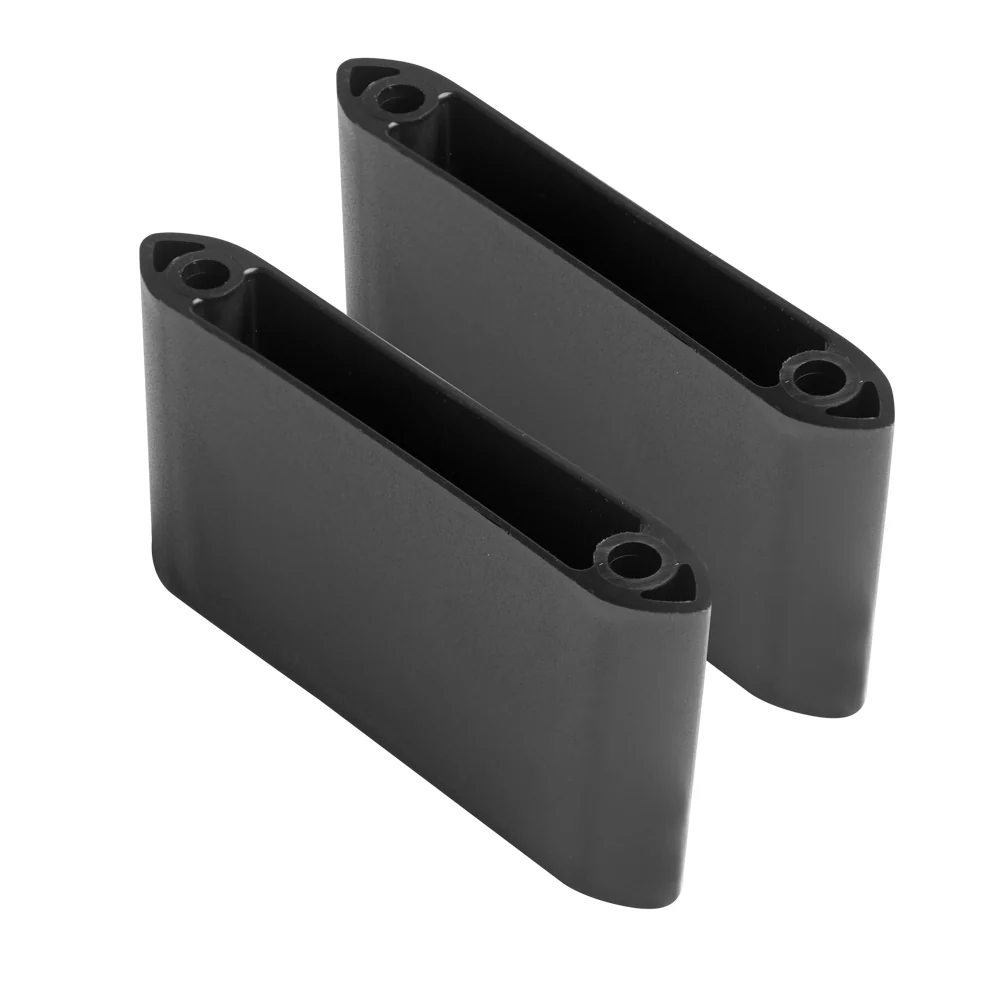

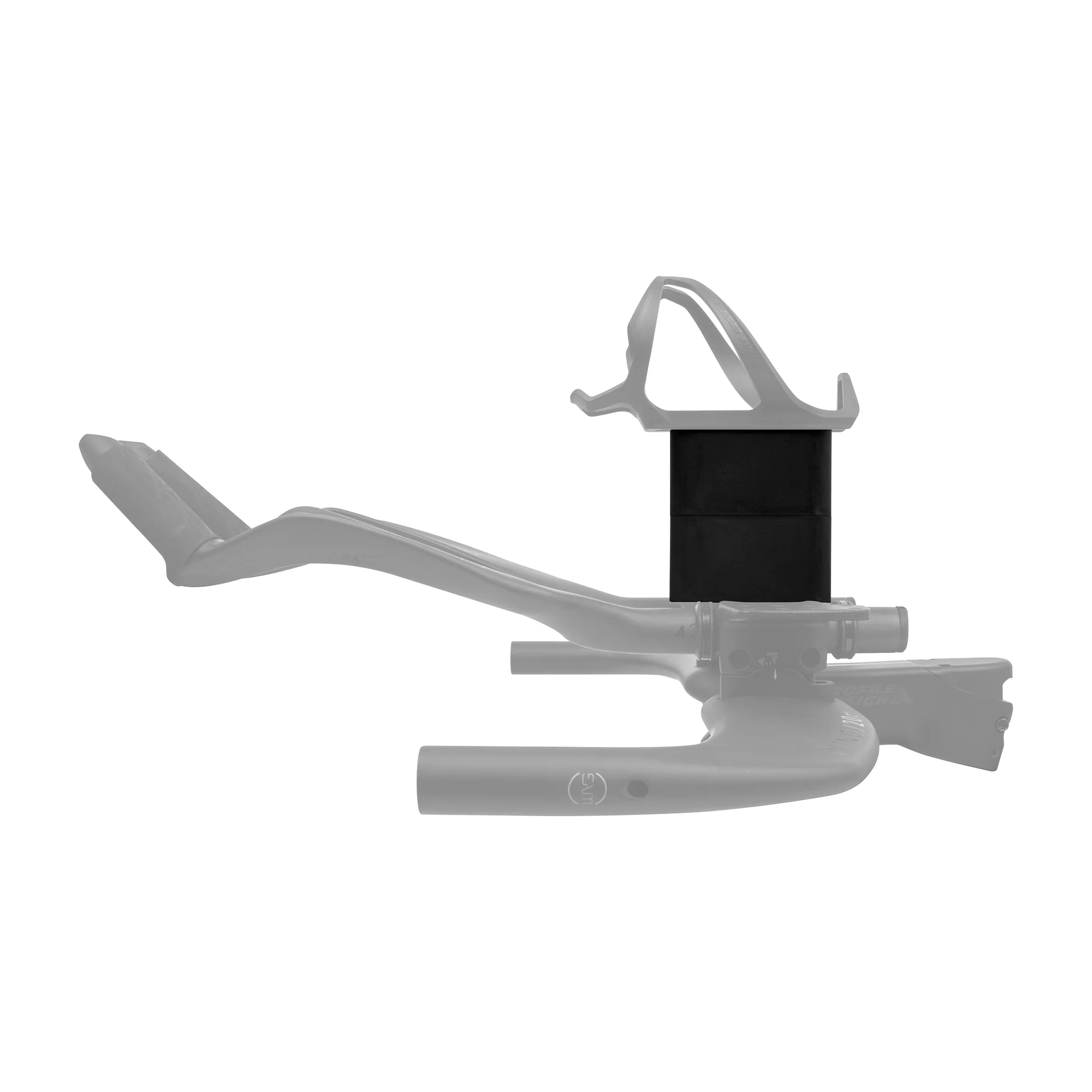

The HSA Riser works with our aerobar mounted brackets to raise the bottle by 45mm. The risers can be stacked for a total height of 90mm.

Pairing the riser with our BTA wedges will allow riders to fine tune the placement of their bottles to achieve the best accessibility.

Key Features:

• Compatible with any 65mm spaced BTA cage mount
• Lightweight resin construction

Tech Specs

• Construction: Injected nylon/glass fiber construction
• Compatibility: HSA Mini BTA mount, HSF BTA, Aerodrink BTA tilt bracket, HC systems or BTA mounts with a standard cage mount.
• Bolt Spacing: 65mm

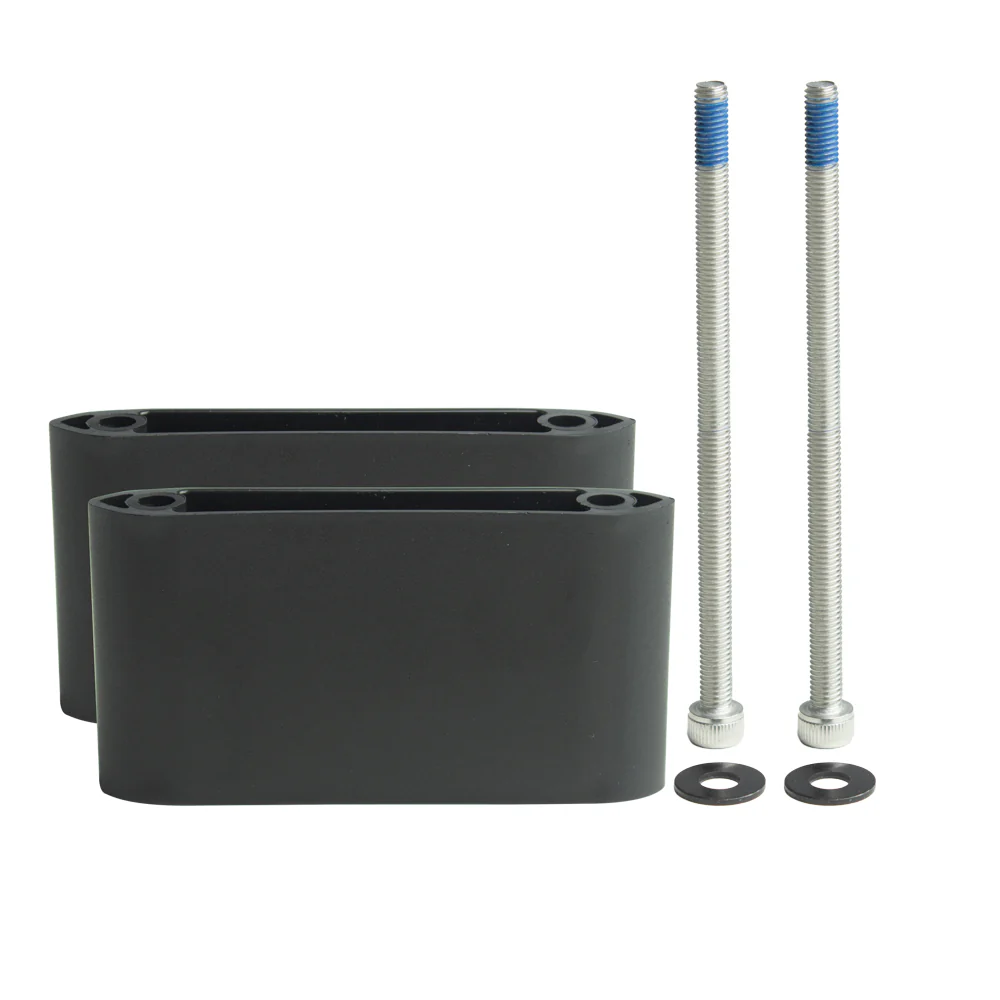

• Height: two options available - 45mm kit (bolts included) or a 90mm option (a 90mm comes with 2 x 45mm risers and bolts for both 45mm or 90mm option)
• Length: 83.5mm
• Colors: Matte Black
• Weight: 18.3g (45mm kit)

Torque settings

• Mounting Bolts: 1Nm

Manual

HSA Riser Kit Installation Instructions

Installation videos

How to Install - HSA Riser Kit
