Overview

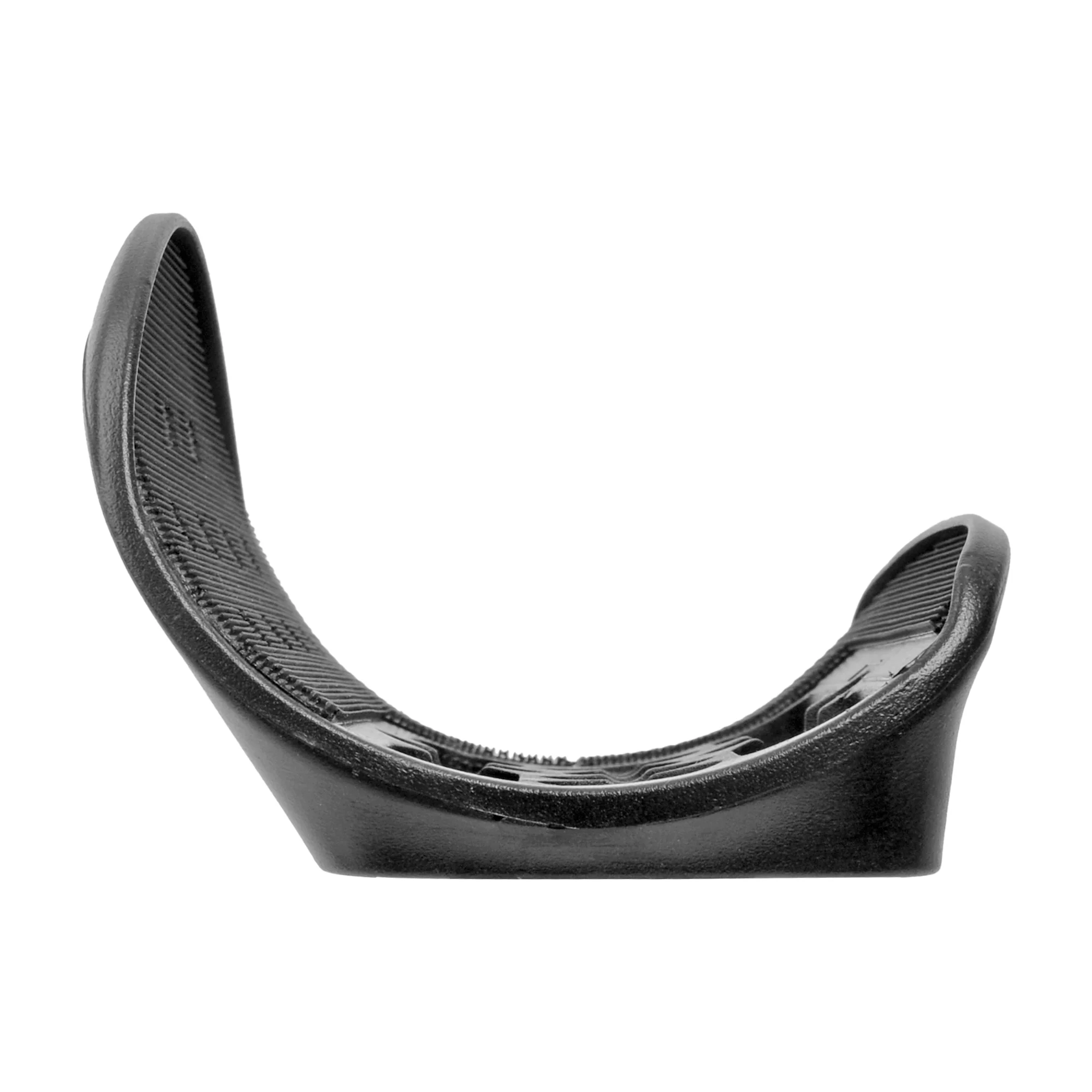

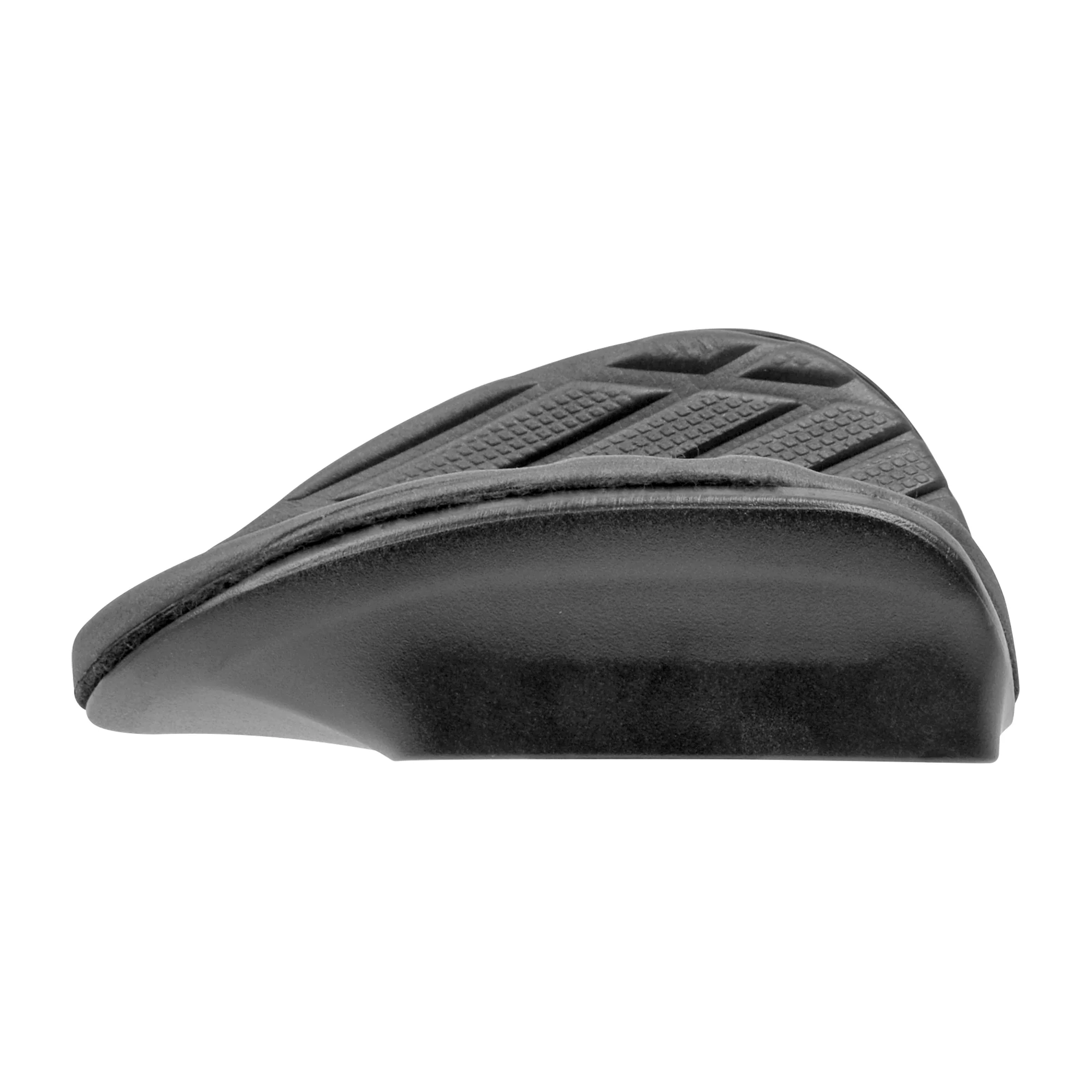

The Race-H Armrest offers the same curvature as our Race+, with the addition of a higher outer wall. This aids riders in holding a narrow elbow position.  The cradles bolt pattern allows for a range of spacings – expanding the number of bars that this armrest can fit with.  Additionally, the sides of the cup and the pad are designed to present a smooth surface for the air to flow past the cup edges. The Race-H can be paired with any of our current and recent model aerobar's as a potential comfort upgrade.

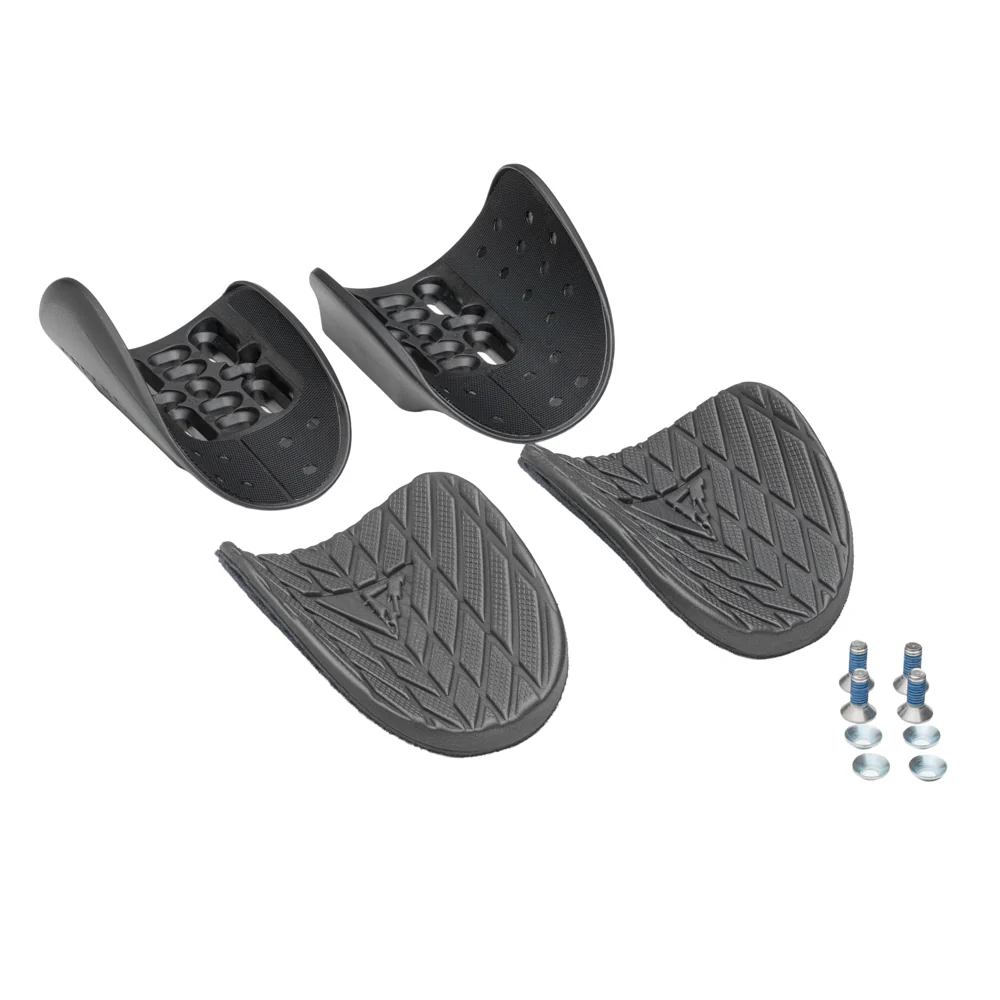

Armrest kit includes PFD armrest compatibility washer - M5 (the washer allows installation with aerobars using M5 bolts)

Specifications

• Bolt Spacing Options: 12.5mm, 14mm, 16.5mm, 18.5mm and 29mm
• Reach Increment: 15mm
• Width Increment: 18.5mm
• Length: 124mm
• Height: 64mm
• Stack: 8mm
• Width: 87mm

Tech Specs

• Armrest Construction: Injected Nylon/Glass Fiber

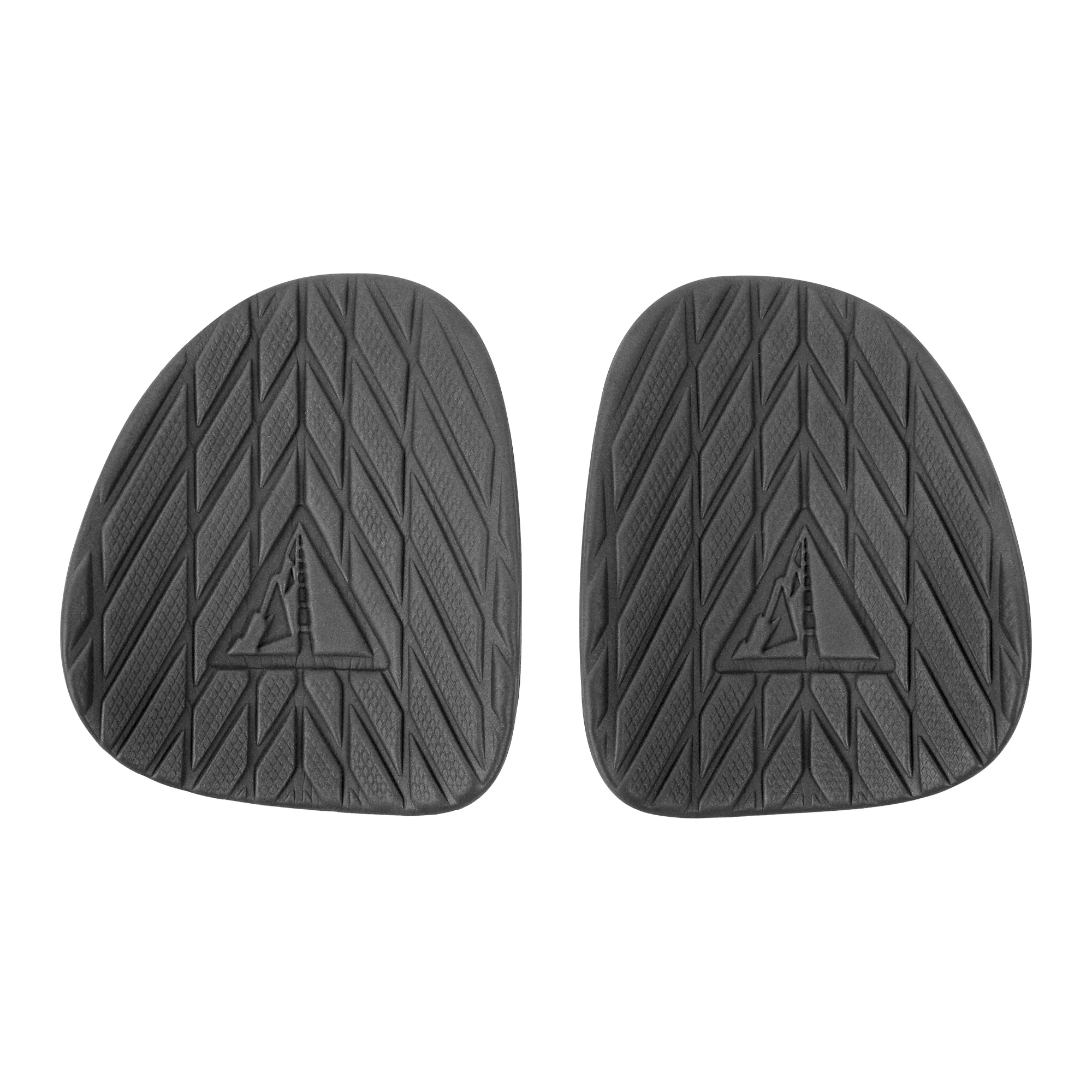

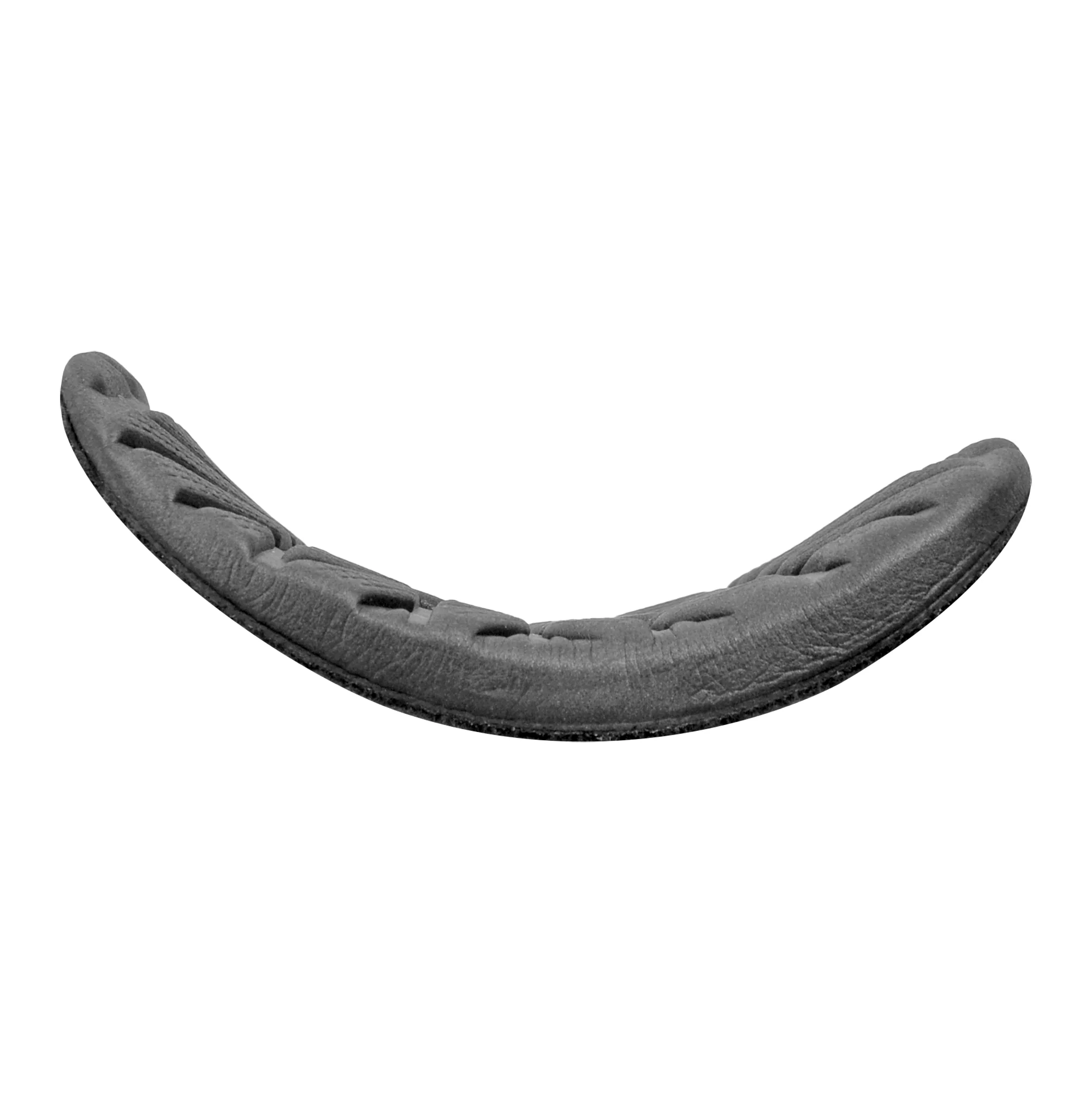

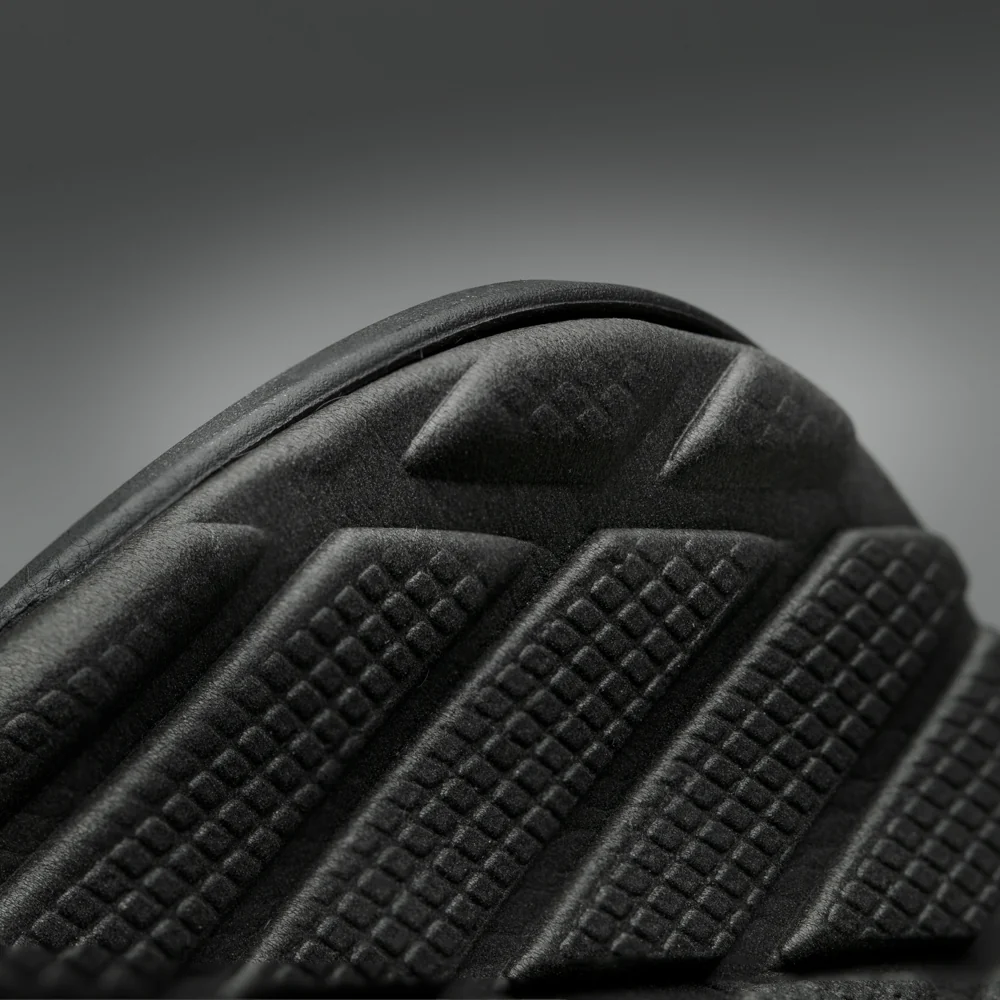

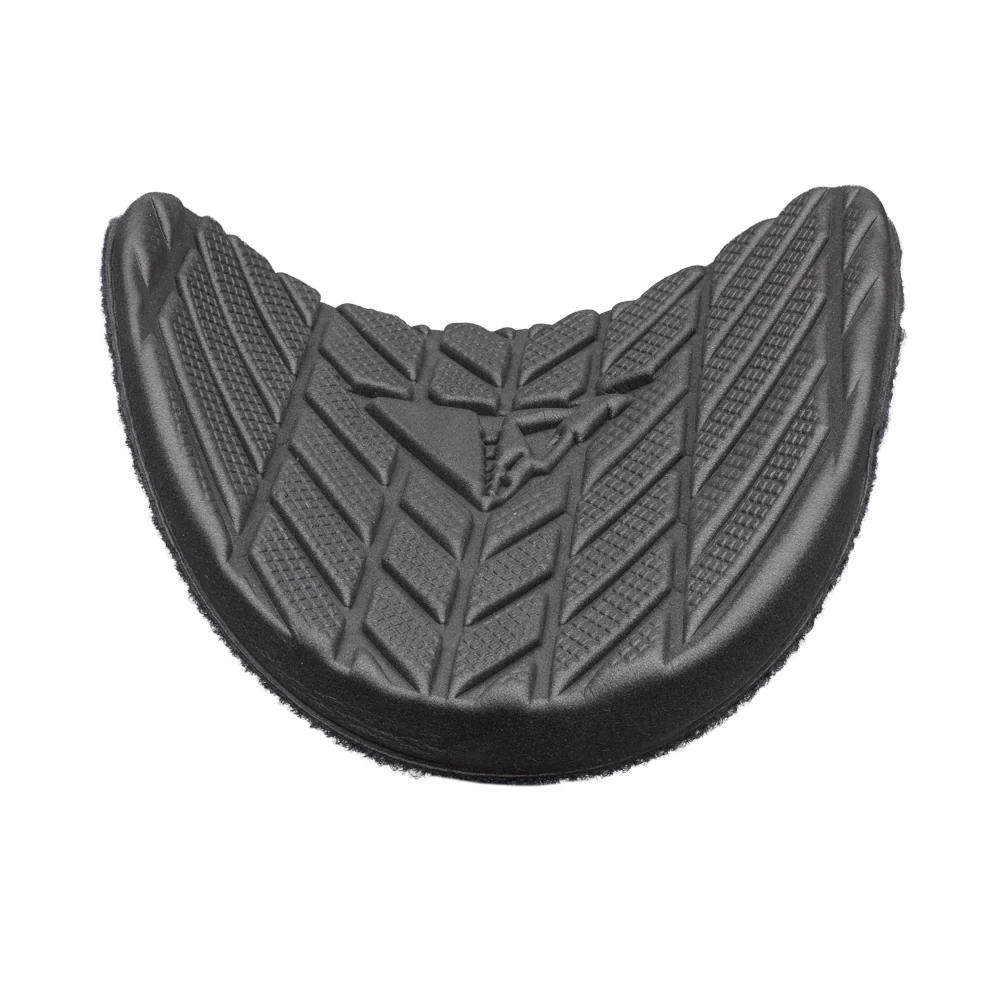

• Pad Construction: EVA foam
• Pad Model: Race-H Ultra 10-5mm
• Color: Matte Black
• Hardware: M6 x 16mm SS

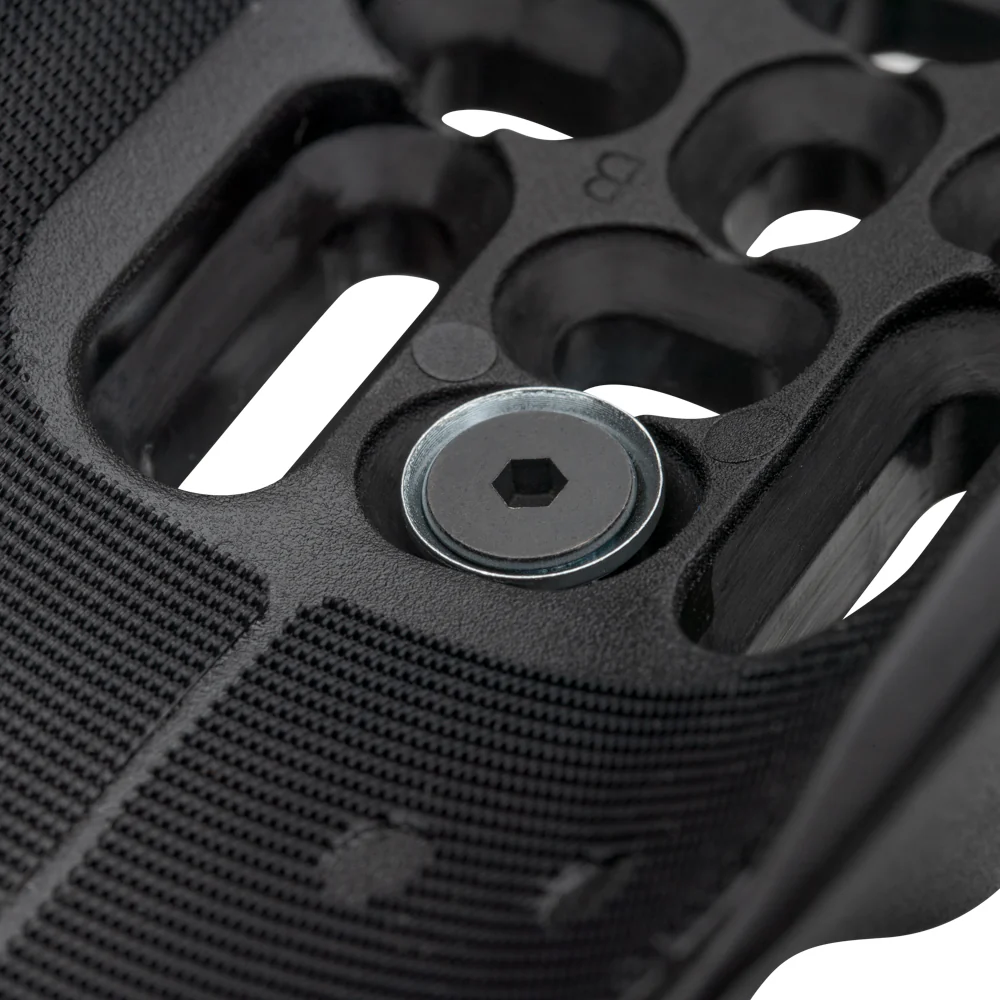

• Conical Washer: PFD armrest compatibility washer - M5 (washer allows installation with aerobars using M5 bolts)
• Weight: 246g/pair

Manual

Race-H Armrest Kit Installation Instructions
